2Z26000007

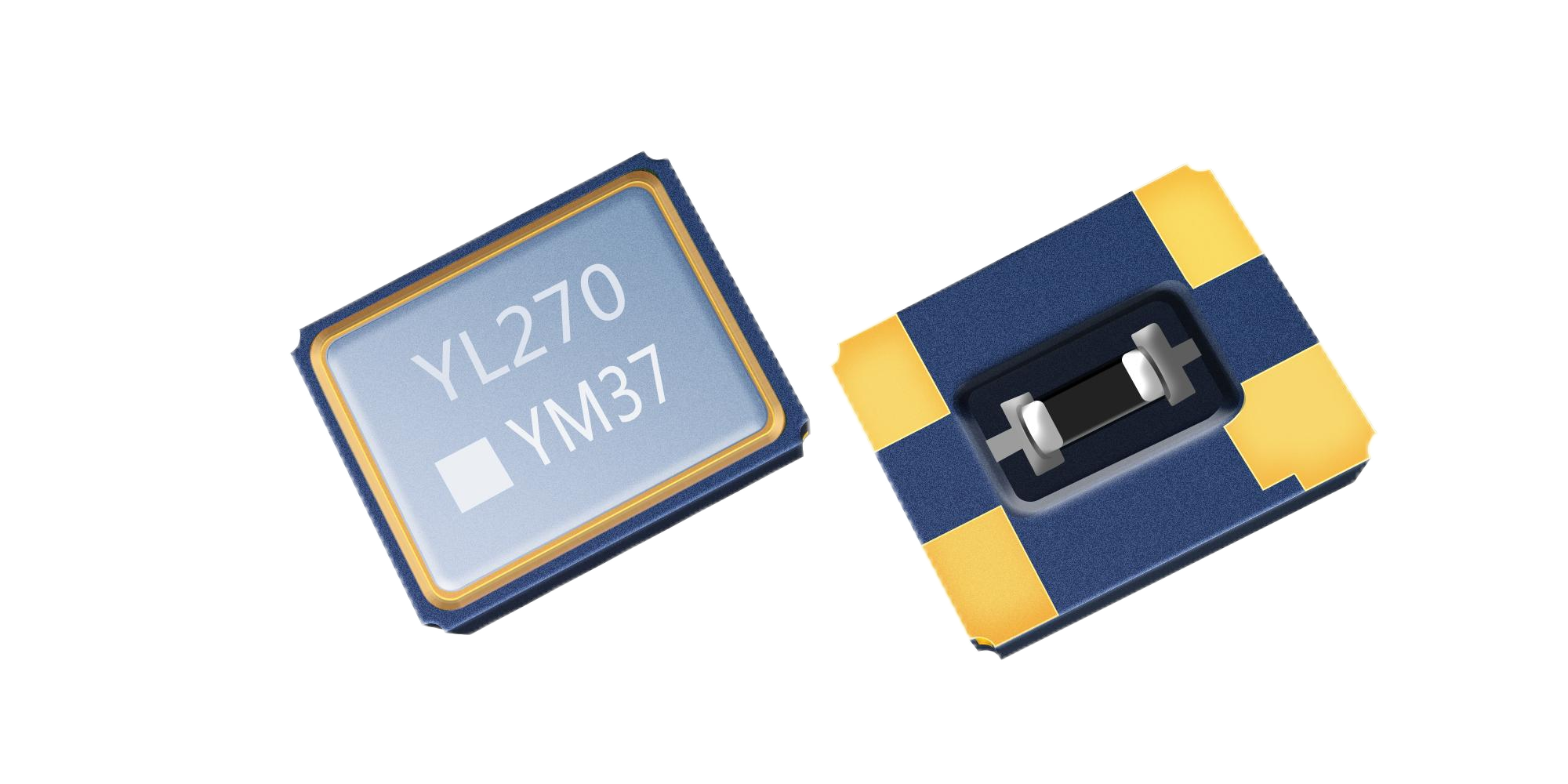

YL,2Z,2520_4P,26.000000MHz,7.0pF,-10~+10ppm,-30~+105℃,2.50 x 2.00mm,100KΩ,4250K,4Pins
产品状态:
应用类别:
应用技术:
认证:
product_details
| Abbreviation | PARAMETERS | Conditions | Min | Typical | Max | Unit | Match |
|---|---|---|---|---|---|---|---|
| BR | 品牌 | YL | |||||
| S/N | 产品系列 | 2Z | |||||
| PKG | 封装外形 | 2520_4P | |||||
| F_out | 标称频率 | 26.000000 | MHz | ||||
| CL | 负载电容 | 7.0 | pF | ||||
| △F/F0 | 频率稳定度 | @25℃ | -10 | +10 | ppm | ||
| TA | 工作温度范围 | -30 | +105 | ℃ | |||
| △f_temp | 温频特性 | -30℃ ~ +85℃ | -12 | +10 | ppm | ||
| Dim | 尺寸/长x宽 | 2.50 x 2.00 | mm | ||||
| H/T | 高度/厚度 | 0.90 | mm | ||||
| CT | 切型 | AT Cut | |||||
| V.M | 振动模式 | Fundamental | |||||
| TR | 热敏电阻值 | 100 | KΩ | ||||
| Tt | 热敏电阻精度 | ±1.0 | % | ||||
| B | B常量 | @+25~+50℃ | 4250 | K | |||
| ESR | 谐振电阻 | 50 | Ω | ||||
| T_stg | 存储温度范围 | -40 | +105 | ℃ | |||
| Wout | 输出波形 | Sine Wave | |||||
| DL | 激励功率 | 10 | 100 | μW | |||
| SPDB | 杂散寄生 | - | - | - | dB | ||
| S | 调谐灵敏度 | 13.5 | 15 | 16.5 | ppm/pF | ||
| Q | 品质因素 | 75000 | |||||
| IR | 绝缘电阻 | @ DC100V | 500 | MΩ | |||
| f_age | 年老化率 | ppm/1Years | -0.7 | +0.7 | ppm/year | ||
| PIN | 引脚数 | 4 | Pins | ||||
| ET | 封装技术 | Resistance Weld | |||||
| pkg | 包装类型 | Tape/Reel | |||||
| C.T.S | 载带标准 | 8.0 | mm | ||||
| DR | 载盘尺寸 | Plastic Tape Φ180 | mm | ||||
| MPQ | 最小包装数 | 3000 | Pcs | ||||
| I.M | 安装方式 | Surface Mount | |||||
| M.M | 主要材质 | Quartz,Thermistor,Ceramics | |||||
| B.C. | 品牌国别 | China | |||||
| MFR | 原始制造商 | Failong Crystal Technology Co.,Ltd | |||||
| M.T | 印字类型 | Laser | |||||
| N.W. | 净重 | 0.013 | g | ||||
| USHTS | 美国海关关税编码 | 8541600060 | |||||
| TARIC | 欧洲进口关税编码 | 8541600000 | |||||
| ECCN | 出口控制分类编号 | ERA99 | |||||
| ALIASES | ALIAS | - | - | - | - | - |

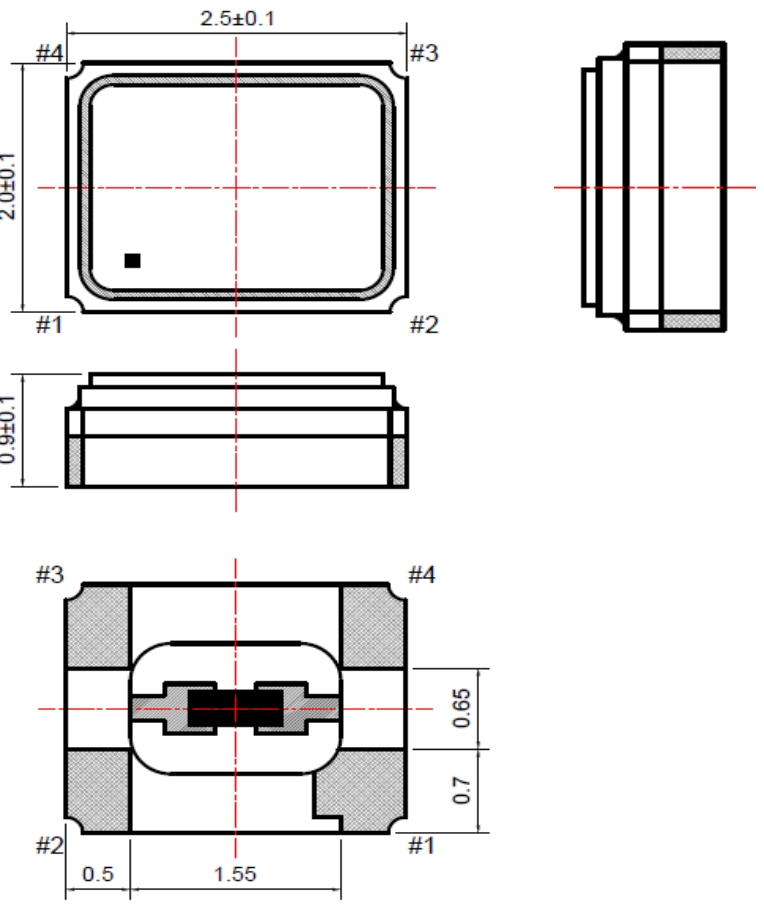

DIMENSION

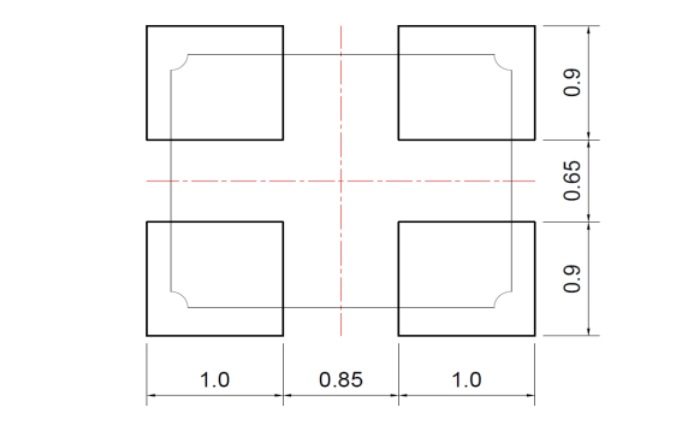

PATTERN

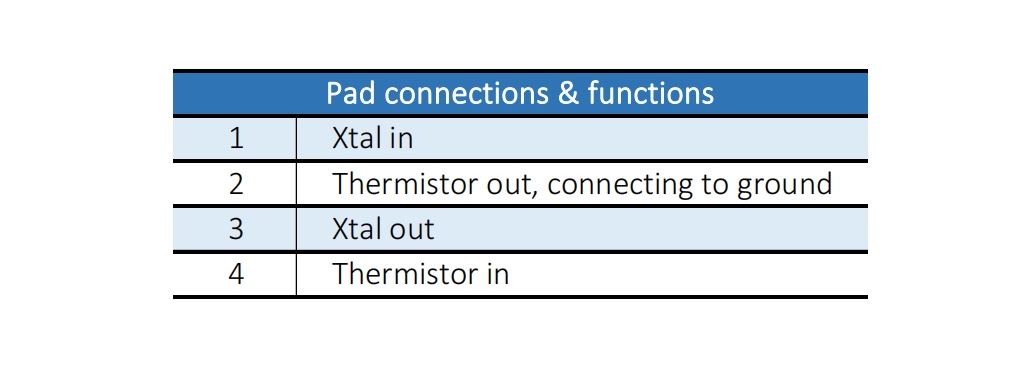

PIN_CONFIG
